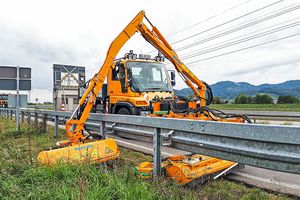

  • Additional Mowing Disc ZMS 400 mounted on verge mower
    Additional Mowing Disc ZMS 400 in use

    Additional Mowing Disc ZMS 400

    The additional mowing disc ZMS 400 is ideal for mowing the immediate area of crash barriers with reduced post spacing (e.g. Super-Rail).

    It is attached to the verge mowing head RMK 1200 or automatic sensor mowing head TMK 1200 and folded out for use when required.

    • Hydraulic drive
    • Autom. evasive movement in case of obstacles
    • Can be switched on and off via control panel
    • Quick assembly and disassembly

    Combined use with two additional mowing discs

    Additional Mowing Disc ZMS 400 in combination use
    Additional Mowing Disc ZMS 400 in combination use

    For combined use from both sides of the crash barrier, another additional mowing disc can optionally be attached to the mowing head of a combination boom.

    • Especially effective in combined operation
    • Ideally suited for use on the MKM 700 combination mower
    • Also available for use in left-hand operation on the motorway median strip
    Technical Data Features
    Working width 400 mm
    • Hydraulic drive
    • Automatic evasive movement in case of obstacles
    • Can be switched on and off via control panel
    • Quick assembly and disassembly
    • Use in combination operation possible

    Construction height mowing disc 260 mm
    Cutting height 65 mm
    Rotation speed ca. 3.600 U/min
    Weight ca. 60 kg
    Permissible power consumption 20 kW
