  • The mowing combination MKM 700.

    MKM 700

    Thanks to the integral lateral shift, the MKM 700 is able to go round obstacles like trees and traffic signs effectively. It is possible to operate both mowers ergonomically, easily and simply, thanks to the perfect interplay of the ingenious electronic control components - even in difficult terrain.

    Extended boom system

    Thanks to the overhead offset cylinder on the front arm, the optional extended boom system offers an optimized arm geometry with more free space to pass over obstacles. As a result, standard mowing procedures must be interrupted more rarely in order to manoeuvre the boom around the obstacle. A saving of time, which is economically evident. At the same time the maximum possible reach of the arm is increased to 6.9 m (and/or 7.4 m when the verge mower has been dismantled). It helps improving operation in ditches and on slopes.

    Technical specifications Reach diagram
    Reach*Front mounted mower 6.7 m /7.2* m
    Verge mower 3.0

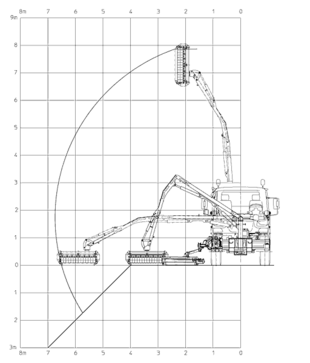

    Reach diagram of the MKM 700
    Designed for modelU400 / U500
    Lateral shiftFront mower 850 mm / 1300* mm
    Special feautures
    • Proportional control with CAN-Bus
    • Automatic parking / extending of the verge mower
    • Automatic touch control and arm relief system m|tronic





    * after dismounting of the verge mower / All range data indicated refer to the maximum possible values measured from the centre of the vehicle and with a 1.20m mowing head
