  • Comet 8D Pushback Tractor

    Comet 8D

    The Comet 8D is the powerful solution in the field of cargo handling and pushback at airports and for demanding industrial applications. Interesting equipment details like the hydraulically suspended seat adjustable to the weight of the driver/co-driver and also adjustable lengthwise and in height, show our claim for ergonomical vehicles as well as the clearly arranged operating controls in the driver‘s field of vision.

    Engine and power train
    Motor data Engine DEUTZ TCD 3.6 L4 DEUTZ TCD 2013
    Performance 105 kW at 2300 rpm 129 kW at 2300 rpm
    Emission standard EU V / US T4f or EU IIIA EU IIIA
    Power train Drive Allison
    Drive shaft Kessler differential axle

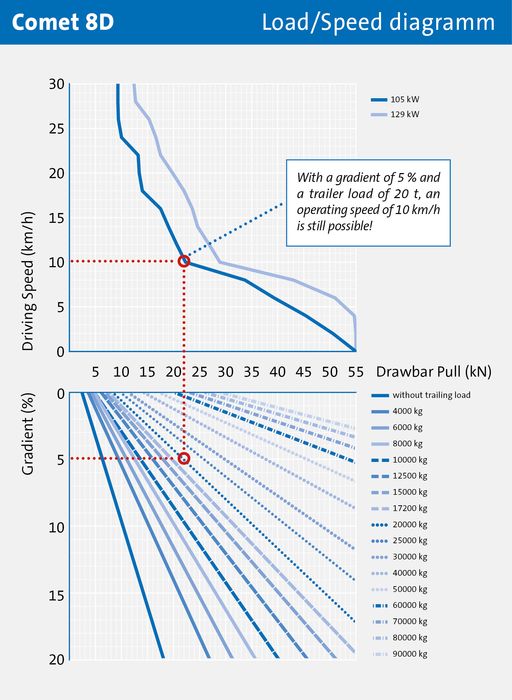

    Power data Drawbar pull 55 kN
    Trailing load* 23 t (acc. to BGV C10 at 30 km/h)
    70 t (acc. to DIN 15172 at 6 km/h)
    Pushback up to 50 t MTOW (according to IATA)
    Miscellaneous Brakes Hydraulic dual-circuit brake system, disc brake with two brake calipers per side at the front, drum brake at the rear combined with parking brake (electro-hydraulic spring loaded brake, acting on rear wheels)
    Steering Hydraulic steering system
    Front axle Leaf spring mounted steering brake axle with shock absorbers
    Rear axle Leaf spring mounted differential axle with shock absorber
    Electric system 24 V
    Tank capacity 85 l Diesel
    Driving speed up to 30 km/h

    *on dry and level ground

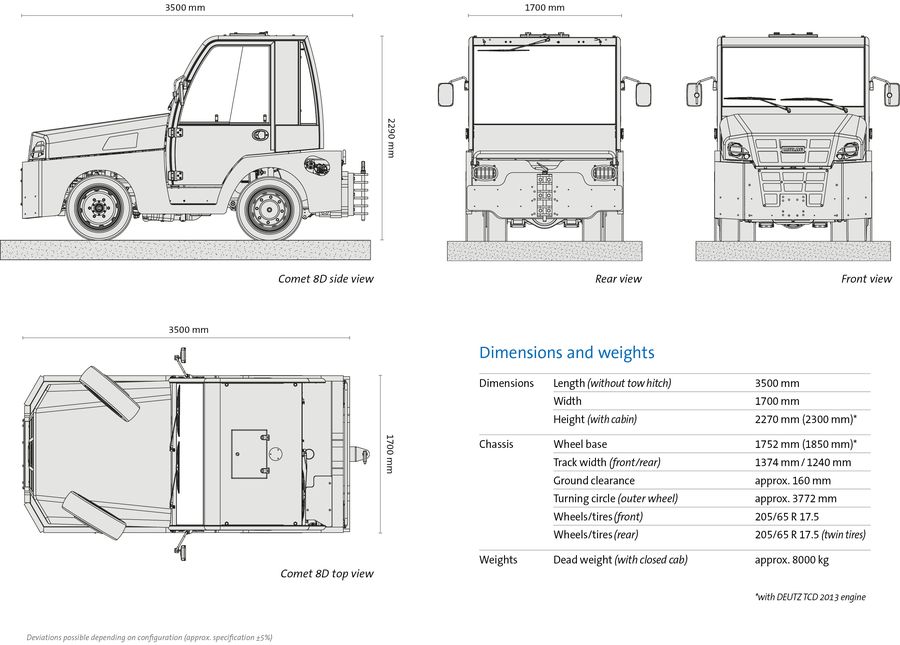

    Dimensions and weights
    Dimensions Length (without tow hitch) 3500 mm
    Width 1700 mm
    Height (with cabin) 2270 mm (2300 mm)*
    Chassis Wheel base 1752 mm (1850 mm)*
    Track width (front/rear) 1374 mm / 1240 mm
    Ground clearance approx. 160 mm
    Turning circle (outer wheel) 3772 mm
    Wheels/tires (front) 205/65 R 17.5
    Wheels/tires (rear) 205/65 R 17.5 (twin tires)
    Weights Dead weight (with closed cab) approx. 8000 kg
    *with DEUTZ TCD 2013 engine

    Deviations possible depending on configuration (approx. specification ± 5%)
