With its innovative characteristics the Comet 4E is the ideal solution for work in cramped indoor conditions, like baggage sorting areas on airports, with every advantage of a sophisticated electric drive concept. Due to an especially developed modular design the vehicle is available with open drivers stand or open cabin under favourable cost conditions. A viewport for the driver enables an optimum view to the rear tow hitch.
Engine and power train
Motor data
Engine
AC, coaxial, axle-integrated
Performance
30 kW
Power train
Electronics
Drive control with braking energy recuperation
Drive shaft
EME differential axle
Power data
Drawbar pull
20 kN
Trailing load*
11.5 t (acc. to BGV C10 at 30 km/h)
35 t (acc. to DIN 15172 at 6 km/h)
Miscellaneous
Brakes
Hydraulic dual-circuit brake system, front disc brake, rear disc brake combined with parking brake (electro-hydraulic spring brake)
Steering
Hydraulic steering system
Front axle
Leaf spring mounted heavy steering brake axle with disc brakes and shock absorbers
Rear axle
Leaf spring mounted heavy differential axle with disc brake
Traction battery
80 V battery, 930 Ah
Electric system
24 V
Driving speed
up to 30 km/h
*on dry and level ground

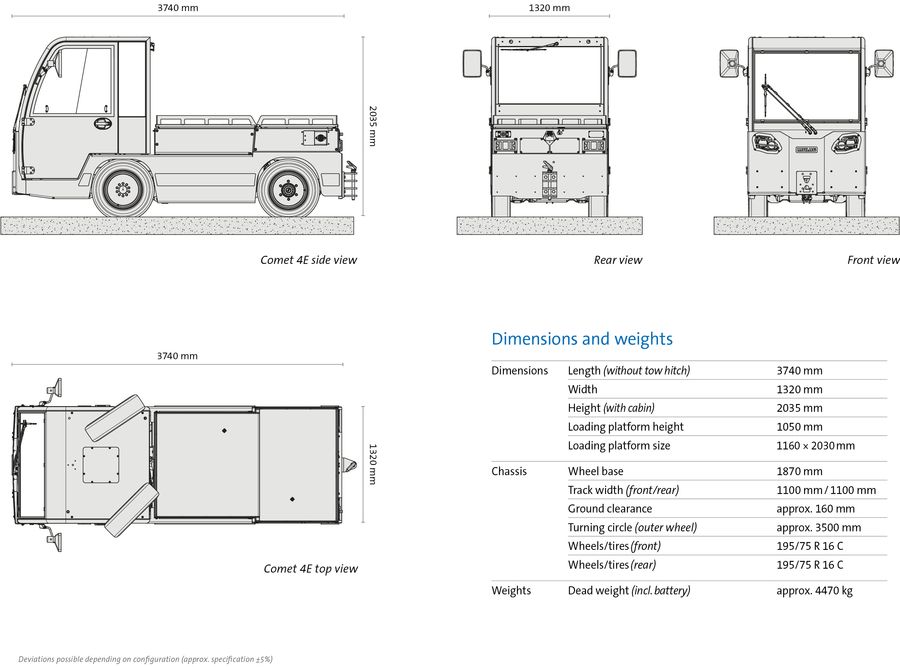

Dimensions and weights
Dimensions
Length (without tow hitch)
3740 mm
Width
1320 mm
Height (with cabin)
2035 mm
Loading platform height
1050 mm
Loading platform size
1160 x 2030 mm
Chassis
Wheel base
1870 mm
Track width (front/rear)
1100 mm / 1100 mm
Ground clearance
approx. 160 mm
Turning circle (outer wheel)
approx 3500 mm
Wheels/tires (front)
195/75 R 16 C
Wheels/tires (rear)
195/75 R 16 C
Weights
Dead weight (incl. battery)
approx. 4470 kg
Deviations possible depending on configuration (approx. specification ± 5%)
