The SB 500 combines the advantages of the telescopic arm with the m|tronic proportional control system in a powerful mowing machine with grass collection ( mulching without grass collection possible as well).
Technical specifications
Reach diagram
Reach*
up to 6.1 m right-/left-hand side

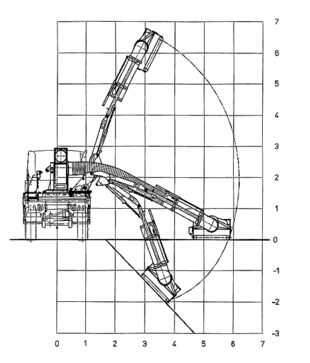

Reach diagram of the SB 500
Type of fitting
Platform or platform frame extension
Lateral shift
800 mm (optional)
Drive
Power hydraulics of the vehicle<br /itional auxiliary drive (N05) Rear PTO-shaft (SBU)
Special feautures
Proportional control with CAN- BUS technology
Powerful radial fan with large diameter
Grass collection into MHT 800 trailer
*All range data indicated refer to the maximum possible values measured from the centre of the vehicle and with a 1.20m mowing head
