The MFK-series with a reach of 6.0 m is the ideal solution for straightforward roadside maintenance. For transport purposes the power arm is parked at the front of the vehicle. Because of its lateral shift capability and its geometry the MFK 500 is very suitable for close roadside mowing work and also behind crash-barriers.
Thanks to the telescopic arm the MFK 500 benefits from a huge reach of up to 7.0 m and can be used very effectively in difficult situations such as hedge cutting.
Technical data
Reach diagram
Reach*
6 m right-/left-hand side 7 m with telescope

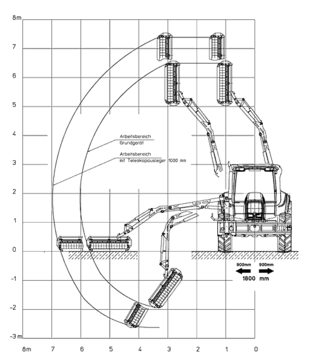

Reach diagram of the MFK 500
Lateral shift
1800 mm
Swivel range
190°
Special features
Transport position in front of the vehicle (equipment width in transport position 2.5 m)
universal use by quick-change-device
*All range data indicated refer to the maximum possible values measured from the centre of the vehicle and with a 1.20m mowing head
